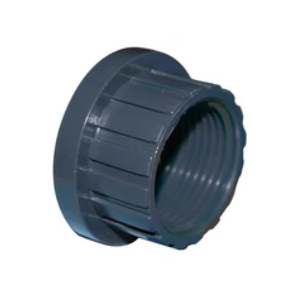

Stub Flange BSP

The PVC ShopSKU: 7.51.012

Price:
Sale price£5.58

Description

Stub Flange BSP

Description

Stub flanges are designed for use with backing rings (PVC or galvanised) and gaskets (IBC or full-face) to enable male threaded BSP pipework or fittings to be connected to PN10/16 flanges.

Approvals

Solvent weld PVC fittings are generally manufactured in accordance with EN1452-3.

Threaded PVC fittings are generally manufactured in accordance with BS21, DIN2999, ISO7.

All fittings have WRAS approval and are suitable for use with potable drinking water applications.

Pressure Rating

PVC solvent weld fittings (sizes 1/2" to 8") have a pressure rating of 15 bar (215 psi) at 20oC.

PVC threaded fittings (1/2" to 4") have a pressure rating of 12 bar (170 psi) at 20oC

As temperature increases the pressure rating is reduced.  PVC systems should not be used where temperatures exceed 60oC.

Sizing - Solvent Weld Pipe & Fittings

Imperial (inch) PVC pipe and fittings sizing is not straightforward. They are sized by their nominal bore or approximate inside diameter.

The following table details pipe outside diameters (o.d.) for each imperial size.  The inside diameter (i.d.) of the socket end of the corresponding fitting will be the same as the outside diameter of the pipe.

Pipe Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
Outside Dia mm 21.4 26.7 33.6 42.2 48.3 60.3 75.2 88.9 114.3



Sizing - BSP Threads

The following table details approximate thread diameters for male BSP threads.

Nom Pipe Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
Thread Dia mm 21.0 26.4 33.2 41.9 47.8 59.6 75.2 87.9 113.0
