Description

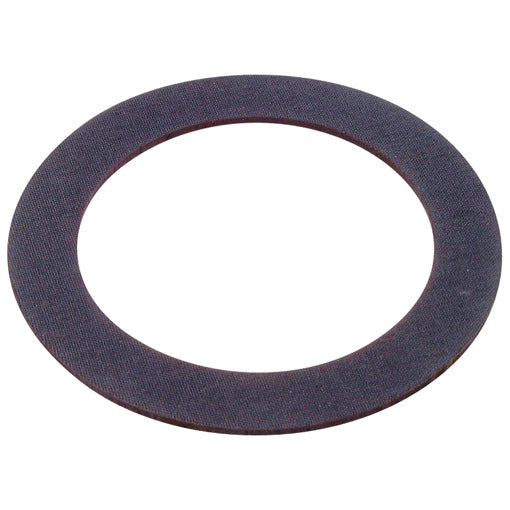

Stub Gasket
EPDM Stub Gasket designed for use with stub flanges in metric and imperial flanged pipework systems.
Features & Specification
- Material: EPDM
- Thickness: 3mm
- Temperature Range: -40°C to +120°C
- Hardness: 70 Shore
- WRAS Approved
Description
For use with stub flanges, these Stub (IBC) Gaskets are manufactured from 3mm EPDM material and provide a reliable seal between mating flange faces.
Sizing
Stub gaskets are sized to suit both metric and imperial flanges as detailed below.
| Flange Size | I.D. (mm) | O.D. (mm) |
|---|---|---|
| 1/2" / 20mm | 22 | 50 |
| 3/4" / 25mm | 28 | 60 |
| 1" / 32mm | 35 | 70 |
| 1 1/4" / 40mm | 43 | 82 |
| 1 1/2" / 50mm | 49 | 92 |
| 2" / 63mm | 61 | 107 |
| 2 1/2" / 75mm | 77 | 127 |
| 3" / 90mm | 90 | 142 |
| 4" / 110mm | 115 | 162 |
| 6" / 160mm | 169 | 218 |
| 8" / 200mm | 220 | 273 |
| 10" / 250mm | 274 | 328 |
| 12" / 315mm | 325 | 384 |
