Ball-Check (DU) Foot Valves Plain

The PVC ShopSKU: 5.58.012

Price:
Sale price£10.78

Description

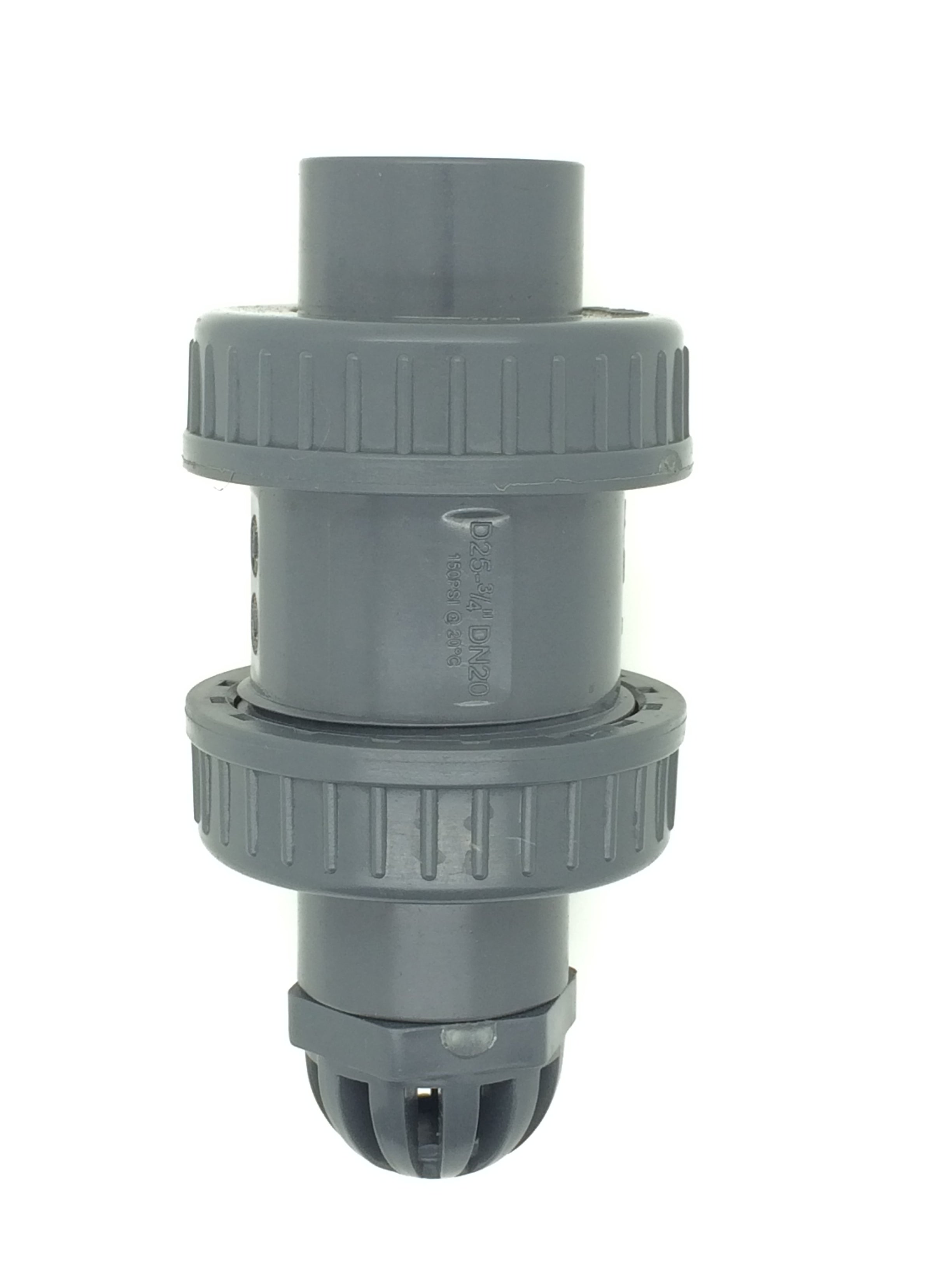

Ball-Check Foot Valve Plain

Description

Double union ball-check valves are one-way non-return valves that should always be installed in a near-vertical orientation. These valves are generally installed end-of-line or on pump inlet pipework. These valves have excellent corrosion-resistant characteristics and can be dismantled for maintenance and inspection purposes.

Pressure Rating

Ball-check foot valves have a pressure rating of 10 bar (150 psi) at 20oC.

As temperature increases the pressure rating is reduced.  PVC systems should not be used where temperatures exceed 60oC.

Sizing - Solvent Weld Pipe & Fittings

Imperial (inch) PVC pipe and fittings sizing is not straightforward. They are sized by their nominal bore or approximate inside diameter.

The following table details pipe outside diameters (o.d.) for each imperial size.  The inside diameter (i.d.) of the socket end of the corresponding fitting will be the same as the outside diameter of the pipe.

Pipe Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
Outside Dia mm 21.4 26.7 33.6 42.2 48.3 60.3 75.2 88.9 114.3



Sizing - BSP Threads

The following table details approximate thread diameters for male BSP threads.

Nom Pipe Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
Thread Dia mm 21.0 26.4 33.2 41.9 47.8 59.6 75.2 87.9 113.0
