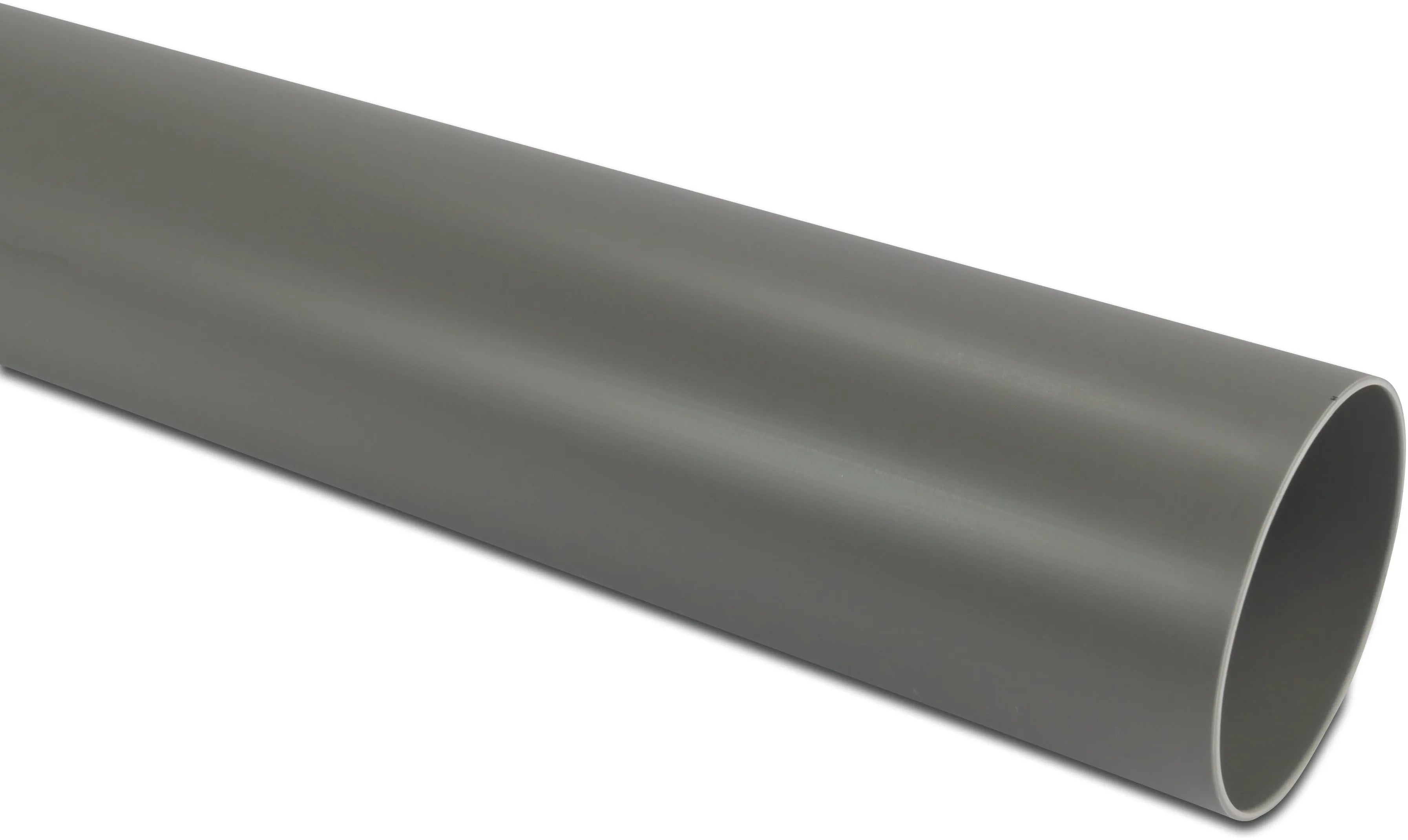

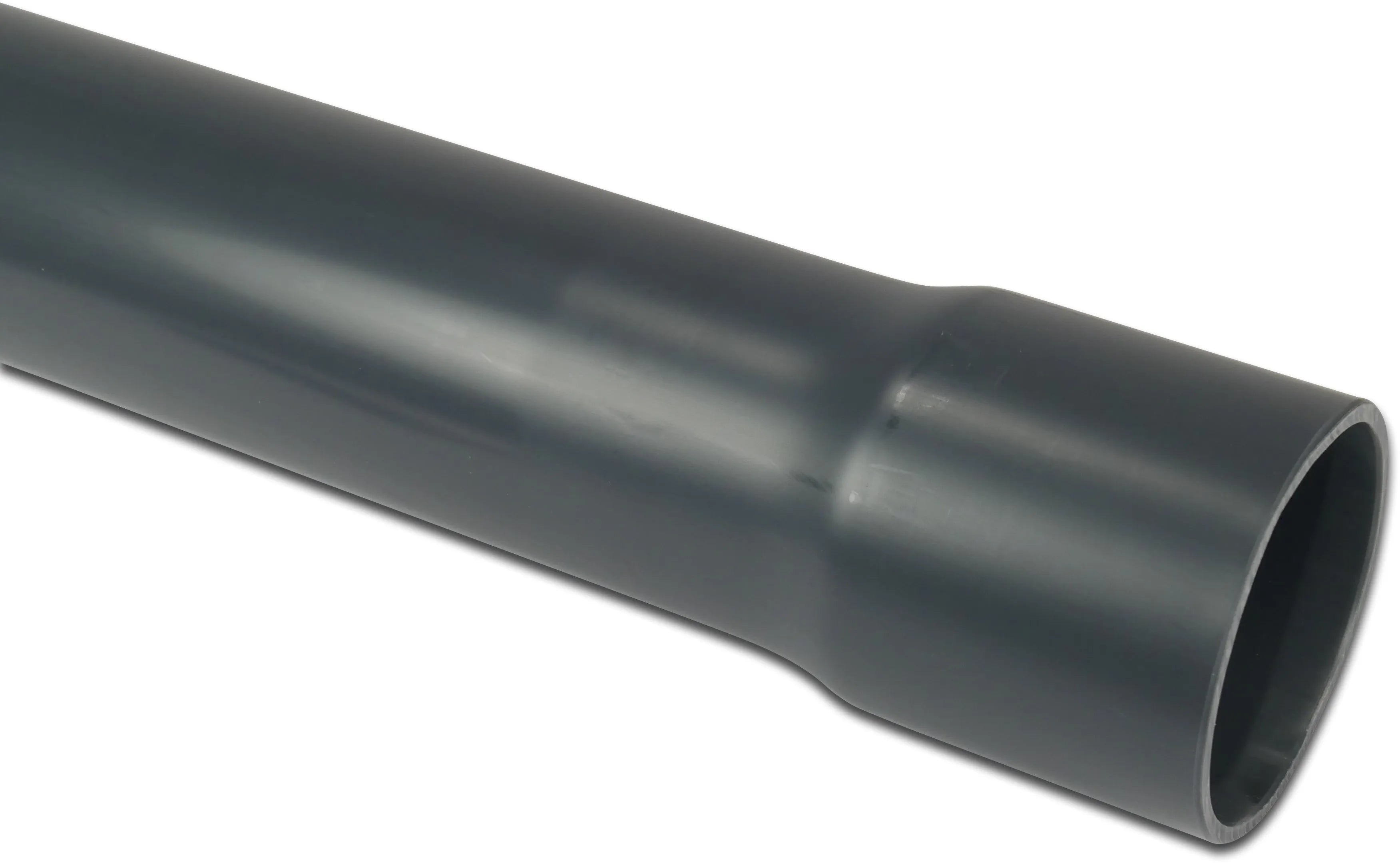

Metric PVC Pipe x 3m (PN10)


Size: 20mm (PN10)
Price:
Sale price£4.00

Description

Caution

The working pressure rating of the metric PVC pipe we offer is 10 bar.

Although this pressure rating may be suitable for most applications we can readily supply pipe with higher pressure ratings or thick-wall pipe for threading if required.  Please ask for further details.

Description

Plain-ended metric pressure pipe manufactured to EN1452-2.

Available in lengths up to 3.0m.

Specification

The table below details the standard metric pipe sizes together with their wall thicknesses and pressure ratings.

Pipe

Size

mm

Pressure

Rating

Bar

Outside

Diameter

mm

Inside

Diameter

mm

Wall

Thickness

mm

Weight



Kg/m

20 10 20 17.4 1.3 0.10
25 10 25 22.0 1.5 0.17
32 10 32 28.8 1.6 0.25
40 10 40 36.2 1.9 0.35
50 10 50 45.2 2.4 0.84
63 10 63 58.2 2.4 1.34
75 10 75 69.2 2.9 1.90
90 10 90 83.0 3.5 2.71
110 10 110 101.6 4.2 3.32
