Description

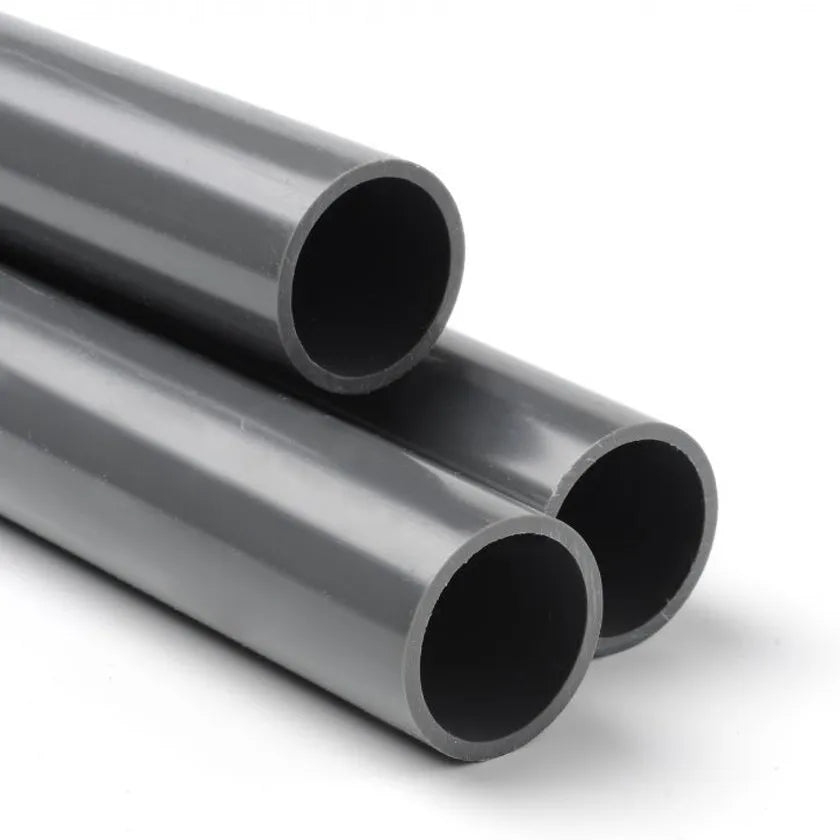

PVC Pipe - 2m lengths
Plain-ended imperial pressure pipe manufactured to EN1452-2.
Available in lengths up to 6m, please enquire for longer lengths.
Specification 2cm +/- Tolerance
|
Pipe Size |
Pipe Class |
Pressure Bar |
Outside mm |
Inside mm |
Wall mm |
Weight Kg/m |
| 1/2" | E | 15 | 21.4 | 18.0 | 1.7 | 0.17 |
| 3/4" | E | 15 | 26.7 | 22.9 | 1.9 | 0.24 |
| 1" | E | 15 | 33.6 | 29.2 | 2.2 | 0.35 |
| 1 1/4" | E | 15 | 42.2 | 36.8 | 2.7 | 0.45 |
| 1 1/2" | E | 15 | 48.3 | 42.1 | 3.1 | 0.71 |
| 2" | C | 10 | 60.3 | 54.1 | 3.1 | 0.90 |
| 2 1/2" | C | 10 | 75.0 | 67.8 | 3.6 | 1.27 |
| 3" | C | 10 | 88.9 | 79.7 | 4.6 | 1.93 |
| 4" | C | 9 | 114.3 | 102.3 | 6.0 | 3.24 |
