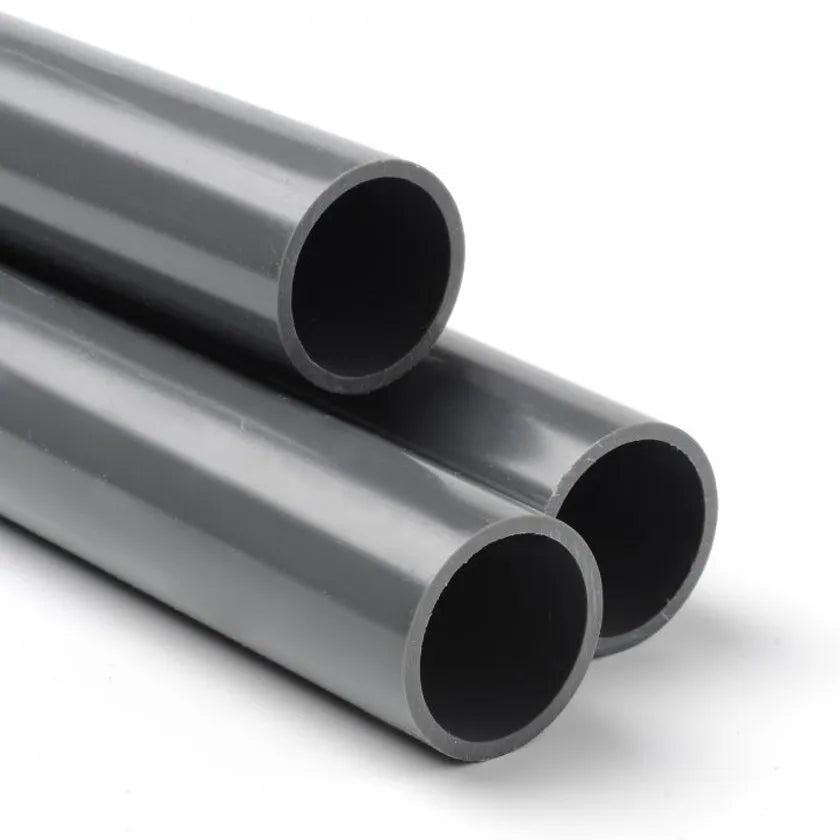

PVC Pipe x 3m


Size: 1/2" (Class E PN15)
Price:
Sale price£4.50

Description

Caution

The working pressure ratings of the PVC pipe we offer varies (between 9 bar and 15 bar) depending on the pipe class and diameter.

Although these pressure ratings may be suitable for most applications we can readily supply pipe with higher pressure ratings or thick-wall pipe for threading if required.  Please ask for further details.

Description

Plain-ended imperial pressure pipe manufactured to EN1452-2.

Available in lengths up to 3.0m.

Specification

The table below details the standard pipe sizes together with their wall thicknesses and pressure ratings.

Pipe

Size

inch

Pipe

Class

Pressure

Rating

Bar

Outside

Diameter

mm

Inside

Diameter

mm

Wall

Thickness

mm

Weight



Kg/m

1/2" E 15 21.4 18.0 1.7 0.17
3/4" E 15 26.7 22.9 1.9 0.24
1" E 15 33.6 29.2 2.2 0.35
1 1/4" D 15 42.2 37.8 2.2 0.45
1 1/2" D 12 48.3 42.1 3.1 0.71
2" C 9 60.3 54.1 3.1 0.90
2 1/2" C 10 75.0 67.8 3.6 1.27
3" C 12 88.9 79.7 4.6 1.93
4" C 9 114.3 102.3 6.0 3.24
