Description
Caution
The working pressure ratings of the PVC pipe we offer varies (between 9 bar and 15 bar) depending on the pipe class and diameter.
Although these pressure ratings may be suitable for most applications we can readily supply pipe with higher pressure ratings or thick-wall pipe for threading if required. Please ask for further details.
Description

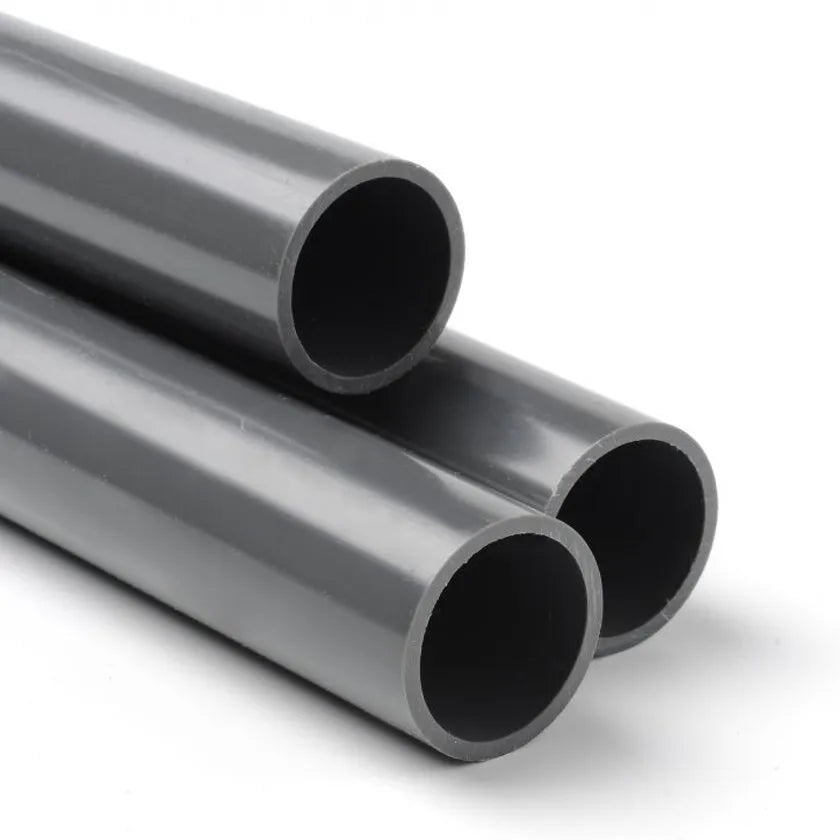

Plain-ended imperial pressure pipe manufactured to EN1452-2.
Available in lengths up to 3.0m.
Specification
The table below details the standard pipe sizes together with their wall thicknesses and pressure ratings.
|
Pipe Size |
Pipe Class |
Pressure Rating Bar |
Outside Diameter mm |
Inside Diameter mm |
Wall Thickness mm |
Weight
Kg/m |
| 1/2" | E | 15 | 21.4 | 18.0 | 1.7 | 0.17 |
| 3/4" | E | 15 | 26.7 | 22.9 | 1.9 | 0.24 |
| 1" | E | 15 | 33.6 | 29.2 | 2.2 | 0.35 |
| 1 1/4" | D | 15 | 42.2 | 37.8 | 2.2 | 0.45 |
| 1 1/2" | D | 12 | 48.3 | 42.1 | 3.1 | 0.71 |
| 2" | C | 9 | 60.3 | 54.1 | 3.1 | 0.90 |
| 2 1/2" | C | 10 | 75.0 | 67.8 | 3.6 | 1.27 |
| 3" | C | 12 | 88.9 | 79.7 | 4.6 | 1.93 |
| 4" | C | 9 | 114.3 | 102.3 | 6.0 | 3.24 |
