Description

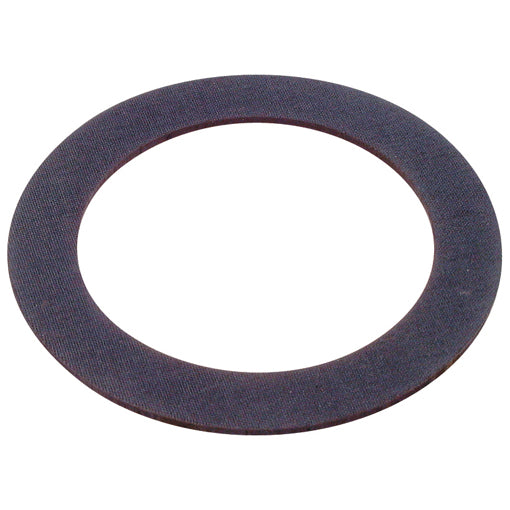

Stub Gasket
- Temperature -40oC to + 120oC
- Hardness 70 Shore
Description For use with stub flanges, stub (IBC) gaskets are manufactured from 3mm 70 EPDM material. WRAS approved.
Sizing
Stub gaskets are sized to suit both metric and imperial flanges as detailed below.
|
Flange Size |
ID mm |
OD mm |
| 1/2" / 20mm | 22 | 50 |
| 3/4" / 25mm | 28 | 60 |
| 1" / 32mm | 35 |
70 |
| 1 1/4" / 40mm | 43 |
82 |
| 1 1/2" / 50mm | 49 |
92 |
| 2" / 63mm | 61 |
107 |
| 2 1/2" / 75mm | 77 |
127 |
| 3" / 90mm | 90 |
142 |
| 4" / 110mm | 115 |
162 |
| 6" / 160mm | 169 |
218 |
| 8" / 200mm | 220 |
273 |
| 10" / 250mm | 274 |
329 |
| 12" / 315mm | 325 |
384 |
