Full Face Gasket PN10/16
Description

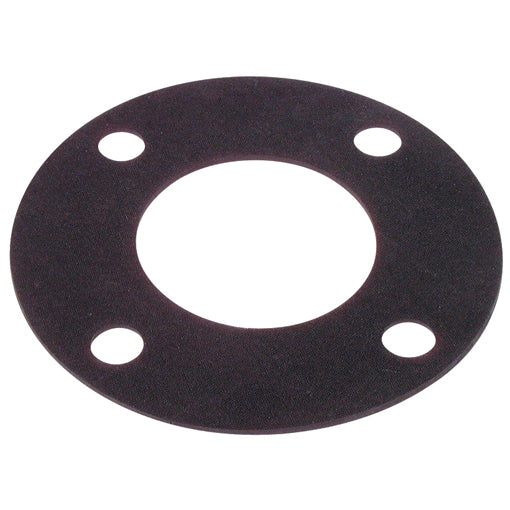

Full face (with bolt holes) manufactured from 3mm 70 EPDM material with hardness of 70 shore. To suit PN10/16 pattern. Resistant to water, weathering and ozone. WRAS approved.
Temperature Range.
-40oC to + 120oC
Sizing
The number and diameter of holes together with the PCD determines the gasket size and pattern. The PCD (Pitch Circle Diameter) is the measurement from the centre of one bolt hole, across the centre of the gasket, to the centre of the opposite hole.
The table below details the specification for both imperial and metric PN10/16. We can also supply Table D/E if required.
|
Gasket Size |
o.d. mm |
i.d. mm |
PCD mm |
Bolt Holes |
Bolt Hole Dia mm |
Bolt Dia mm |
| 1/2" / 20mm | 95 | 22 | 65 | 4 | 14 | M12 |
