Full Face Gasket EPDM PN10/16

The PVC ShopSKU: 7.48.020

Price:
Sale price£1.58

Description

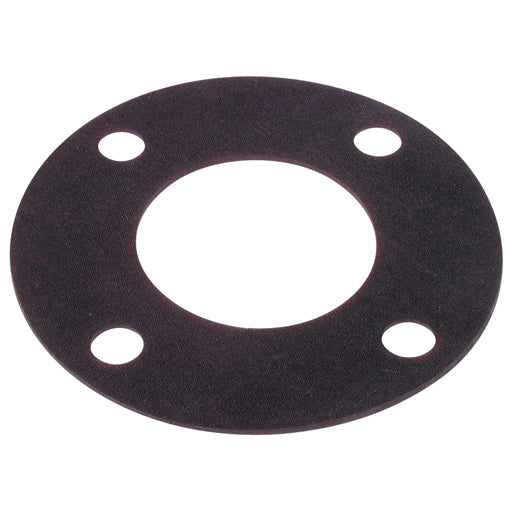

Full Face Gasket PN10/16

Description

Full face (with bolt holes) manufactured from 3mm 70 EPDM material with hardness of 70 shore. To suit PN10/16 pattern.  Resistant to water, weathering and ozone.  WRAS approved.

Temperature Range.

-40oC to + 120oC

Sizing

The number and diameter of holes together with the PCD determines the gasket size and pattern.  The PCD (Pitch Circle Diameter) is the measurement from the centre of one bolt hole, across the centre of the gasket, to the centre of the opposite hole.

The table below details the specification for both imperial and metric PN10/16.  We can also supply Table D/E if required.

Gasket

Size

o.d.

mm

i.d.

mm

PCD

mm

Bolt

Holes

Bolt Hole

Dia mm

Bolt

Dia mm

1/2" / 20mm 95 22 65 4 14 M12
3/4" / 25mm 105 26 75 4 14 M12
1" / 32mm  115 36 85 4 14 M12
1 1/4" / 40mm 140 43 100 4 18 M16
1 1/2" / 50mm 150 50 110 4 18 M16
2" / 63mm 165 60 125 4 18 M16
2 1/2" / 75mm 185 77 145 4 18 M16
3" / 90mm 200 89 160 8 18 M16
4" / 110mm 220 115 180 8 18 M16
6" / 160mm 285 170 240 8 22 M20
8" / 200mm 340 227 295 12 22 M20
10" / 250mm 395 272 355 12 26 M24
12" / 315mm 460 325 410 12 26 M24
