Blank Plate PVC PN10/16

The PVC ShopSKU: 7.43.012

Price:
Sale price£5.46

Description

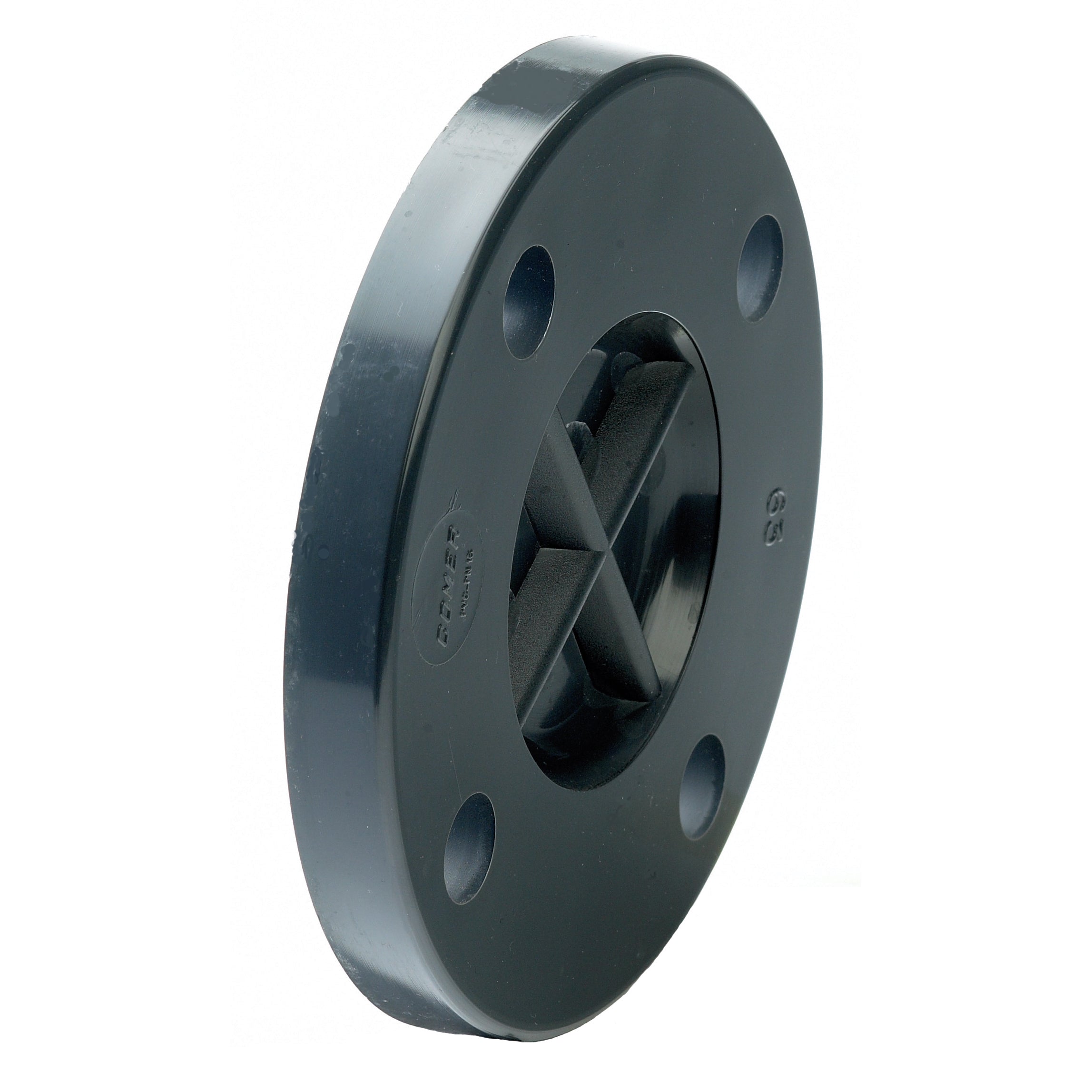

PVC Blank Plate

Description

All PVC blank plates (blind flange) are manufactured to suit PN10/16 pattern. The smaller sizes are 'universal' with elongated fixing holes. These can also be used with Table D & E flanges. The plates are suitable for use with either stub flange assemblies (stub flange and backing ring) or full face flanges.

Approvals

Imperial solvent weld PVC fittings are generally manufactured in accordance with EN1452-3.

Threaded PVC fittings are generally manufactured in accordance with BS21, DIN2999, ISO7.

All fittings have WRAS approval and are suitable for use with potable drinking water applications.

Pressure Rating

PVC solvent weld fittings (sizes 1/2" to 8") have a pressure rating of 15 bar (215 psi) at 20oC.

PVC threaded fittings (1/2" to 4") have a pressure rating of 12 bar (170 psi) at 20oC

As temperature increases the pressure rating is reduced.  PVC systems should not be used where temperatures exceed 60oC.

Plate Sizing

The number and diameter of holes together with the PCD determines the blank plate size and pattern.  The PCD (Pitch Circle Diameter) is the measurement from the centre of one bolt hole, across the centre of the blank plate, to the centre of the opposite hole.

The table below details the specification for both imperial and metric PN10/16.  We can also supply Table D/E if required.

Plate

Size

o.d.

mm

PCD

mm

Bolt

Holes

Bolt Hole

Dia mm

Bolt

Dia mm

1/2" / 20mm 95 65 4 14 M12
3/4" / 25mm 105 75 4 14 M12
1" / 32mm  115 85 4 14 M12
1 1/4" / 40mm 140 100 4 18 M16
1 1/2" / 50mm 150 110 4 18 M16
2" / 63mm 165 125 4 18 M16
2 1/2" / 75mm 185 145 4 18 M16
3" / 90mm 200 160 8 18 M16
4" / 110mm 220 180 8 18 M16
