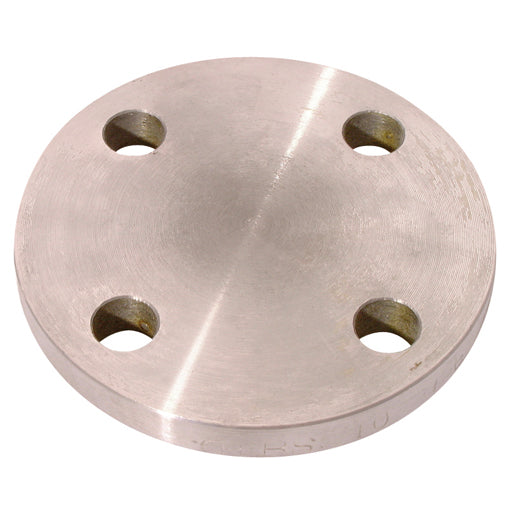

Blank Plate Galvanised Steel PN10/16

The PVC ShopSKU: 7.46.012

Price:
Sale price£6.82

Description

Galvanised Steel Blank Plate

Description

Our steel blank plates are hot-dip galvanised after fabrication so should not rust. The plates are manufactured to suit PN10/16 pattern and are suitable for use with either stub flange assemblies (stub flange and backing ring) or full face flanges.

Pressure Rating

Galvanised steel blank plates have a minimum pressure rating of 20 bar (290 psi).

Plate Sizing

The number and diameter of holes together with the PCD determines the blank plate size and pattern.  The PCD (Pitch Circle Diameter) is the measurement from the centre of one bolt hole, across the centre of the blank plate, to the centre of the opposite hole.

The table below details the specification for both imperial and metric PN10/16.

Plate

Size

o.d.

mm

PCD

mm

Bolt

Holes

Bolt Hole

Dia mm

Bolt

Dia mm

1/2" / 20mm 95 65 4 14 M12
3/4" / 25mm 105 75 4 14 M12
1" / 32mm  115 85 4 14 M12
1 1/4" / 40mm 140 100 4 18 M16
1 1/2" / 50mm 150 110 4 18 M16
2" / 63mm 165 125 4 18 M16
2 1/2" / 75mm 185 145 4 18 M16
3" / 90mm 200 160 8 18 M16
4" / 110mm 220 180 8 18 M16
